2021/09/07 Electromagnetic Clutch (Model Section Chart)

Reference information for electromagnetic clutch model selection.

Model selection table.
Clutch conditions can be classified as follows
When the load is added after starting (e.g. lathe machining where the workpiece has reached a certain speed before cutting).
When the maximum load has been added at start-up (e.g. when the conveyor belt is connected to the load and started at the same time).

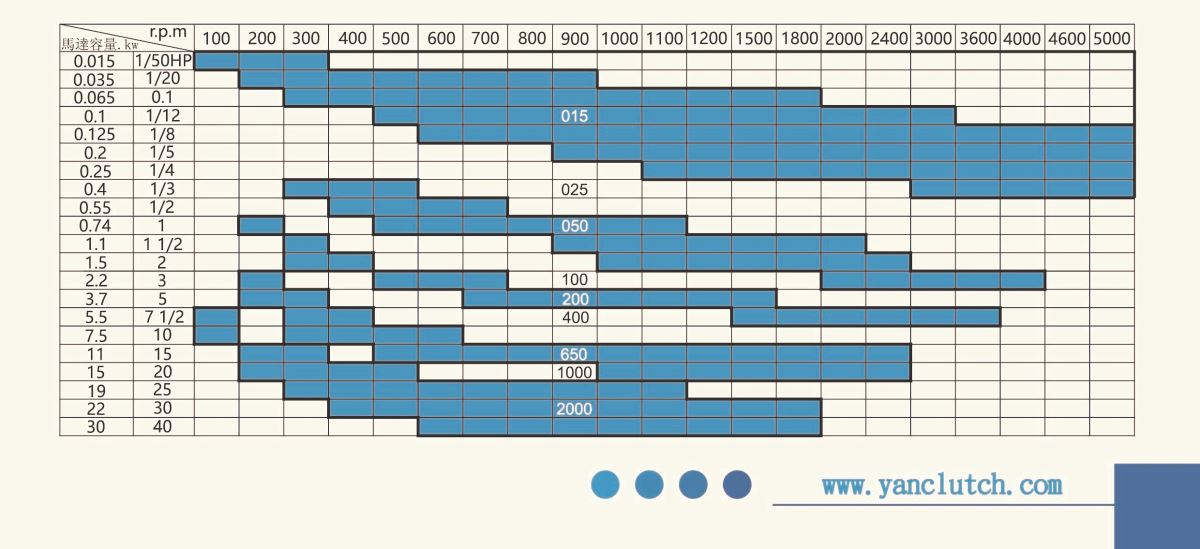

Selected Table 1: When the load is added after the start-up is completed.

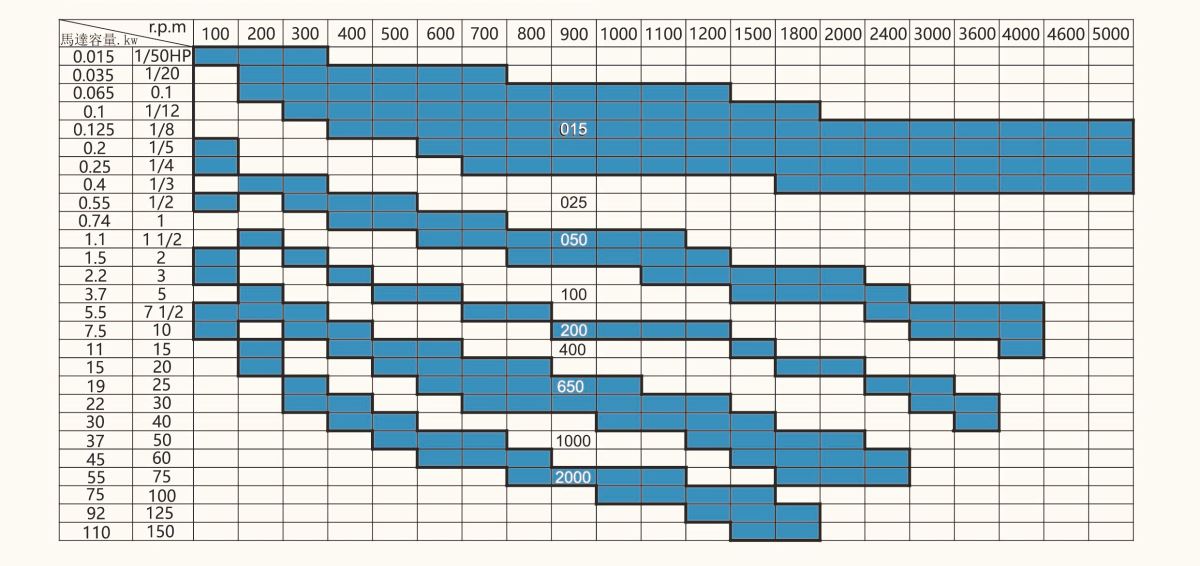

Selected table 2: The situation when the maximum load is added at the time of starting.
