2021/09/10 Electromagnetic Clutch & Brake Product Description

Outline
A clutch is a connector that transmits rotational torque from the active side to the passive side, and can be freely combined or disconnected according to various needs.
The brake is a device that stops the drive shaft or rotating body.

Description of use
Electromagnetic clutch has the characteristics of high speed response, strong durability, easy assembly and maintenance, and precise movement.

Product Features
Simple structure, light weight, small inertia, small size, safe work, high efficiency; good wear resistance of the jointing elements, long service life, good heat dissipation conditions; convenient operation and labor-saving, easy to manufacture, easy to adjust and maintain.

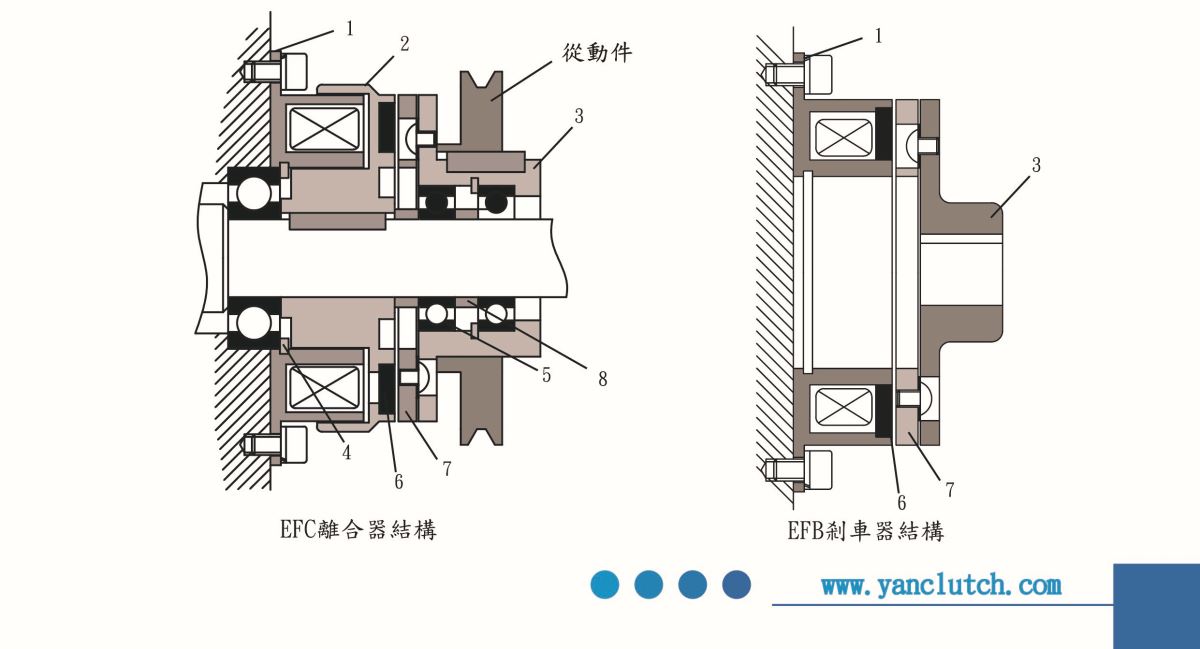

Basic structure

1. Clutch/brake coil holder: used for internal coil fixing.
2. Armature: fixed on the shaft, using magnetic field to absorb and separate the follower.
3. Bearing guide/aluminum guide: Connects to the control end.
4.C type snap ring: used to fix the bearing position.
5. Bearing: Connect the fixed bearing to reduce the friction.
6.International standard non-asbestos laminate: the friction plate works by electrification.
7.Electric armature plate (friction plate): the electricity is absorbed in the work of the lining.
8.Bearing positioning sleeve: fixed position
